6 Channel
DC POWER
SUPPLY
▶ Specifications
| Parameter | Specification |
| Input Power | AC 220[v] |
| Output Power | 2 Channel Single Output : +5[v] 1.2[A] |
| 4 Channel Dual Output : +5[v] 100[mA] | |

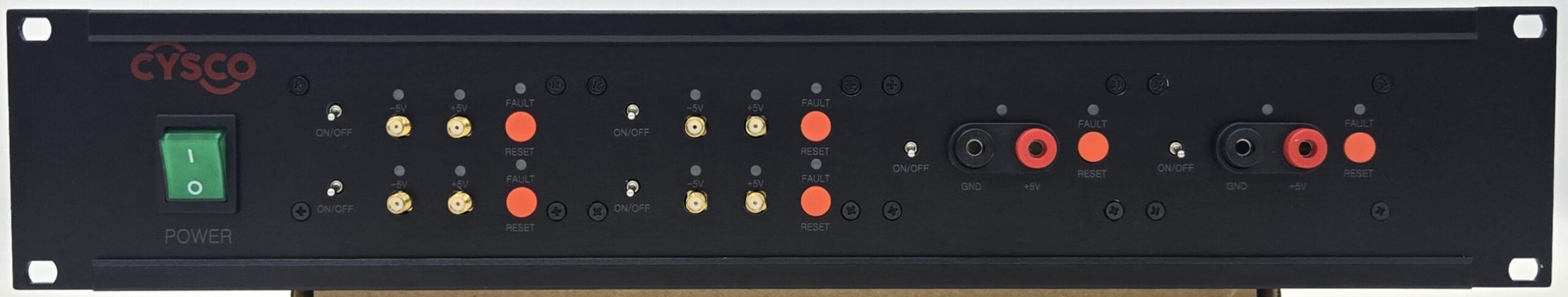

| Switch | Main Power Switch * 1 |
| On/Off Switch * 12 | |
| Reset Switch * 12 | |
| Indicator | Status LED * 10 |
| Fault LED * 6 | |
| Dimensions [W x D x H] | 482.6 x 300 x 88.1[mm] |
▶ Features
- Linear Power Supply
- Higher Stability and Lower ripple than SMPS
- Over Current Protection
- Multi-Channel Configuration
- ±5[V] Output
- Status LED
- 19” Rack Mountable (2U)
▶ Applications
- Physical and Optical Experiment Equipment
- Analog Sensor Power
- RF Switch, APD Power
