LED 6 Channel

DC POWER

SUPPLY

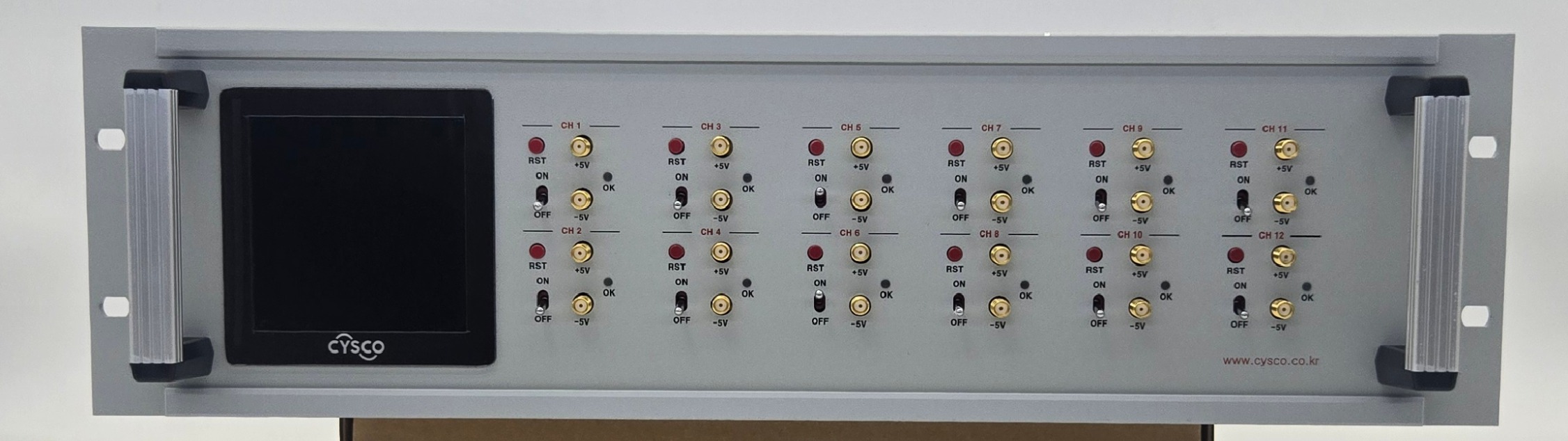

LCD 12 front

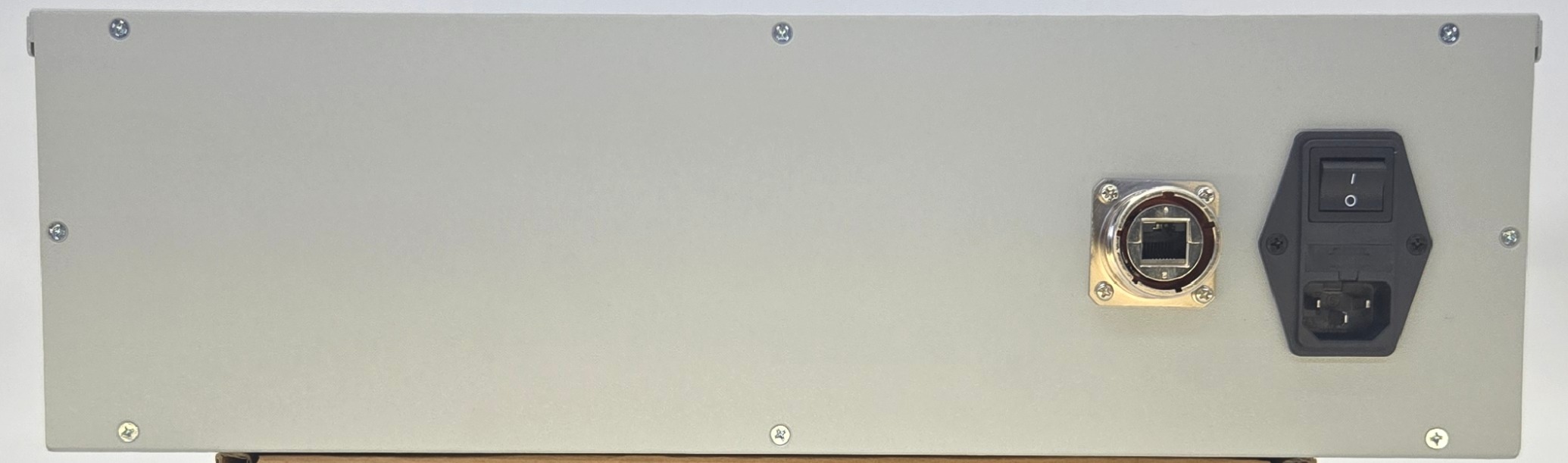

LCD 12 back

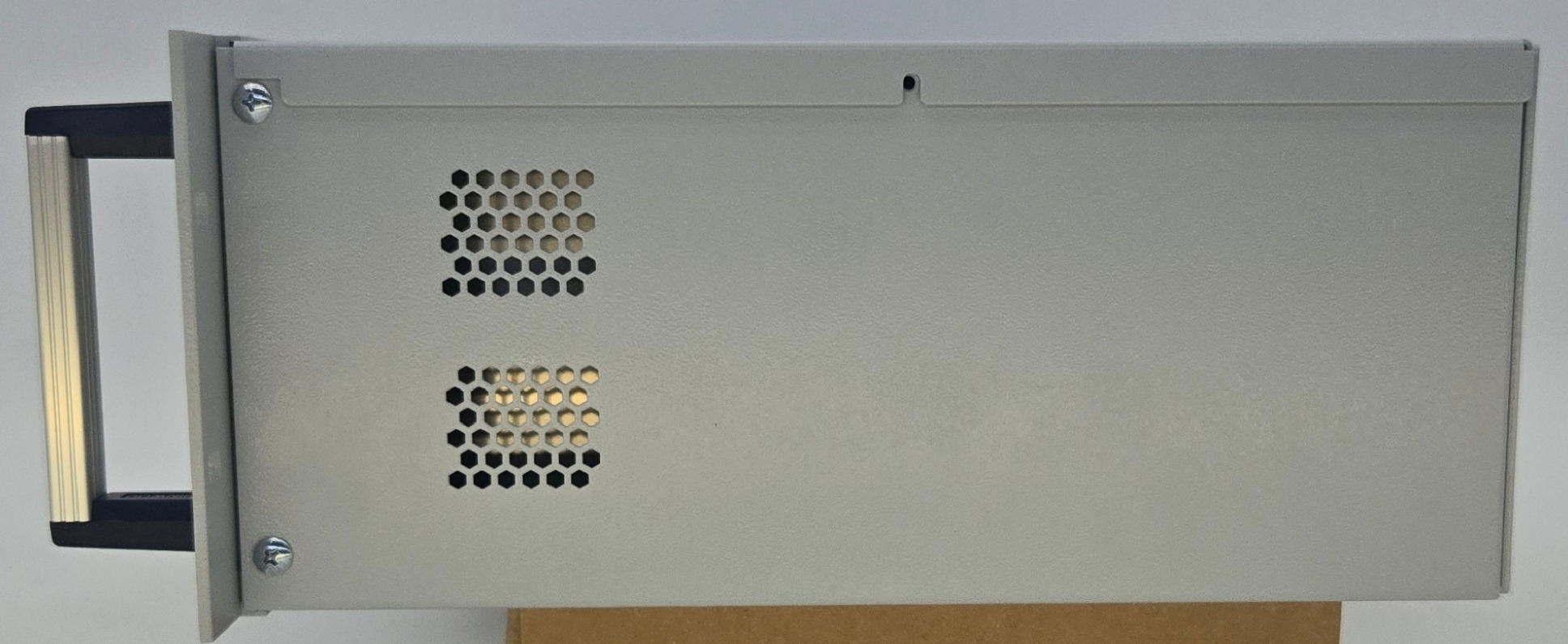

LCD 12 side

▶ Specifications

Parameter Specification
Input Power AC 220[v]
Output Power 12 Channel Dual Output : +5[v] 100[mA]
Switch On/Off Switch * 12
Reset Switch * 12
Indicator Status LED * 20
LCD 4″ Touch LCD (480 x 480)
Dimensions [W x D x H] 482.6 x 300 x 132.5[mm]

▶ Features

  • Linear Power Supply
  • Higher Stability and Lower ripple than SMPS
  • Over Current Protection
  • Multi-Channel Configuration
  • ±5[V] Output
  • Status LED
  • 4″ Touch LCD
  • 19” Rack Mountable (3U)

▶ Applications

  • Physical and Optical Experiment Equipment
  • Analog Sensor Power
  • RF Switch, APD Power
